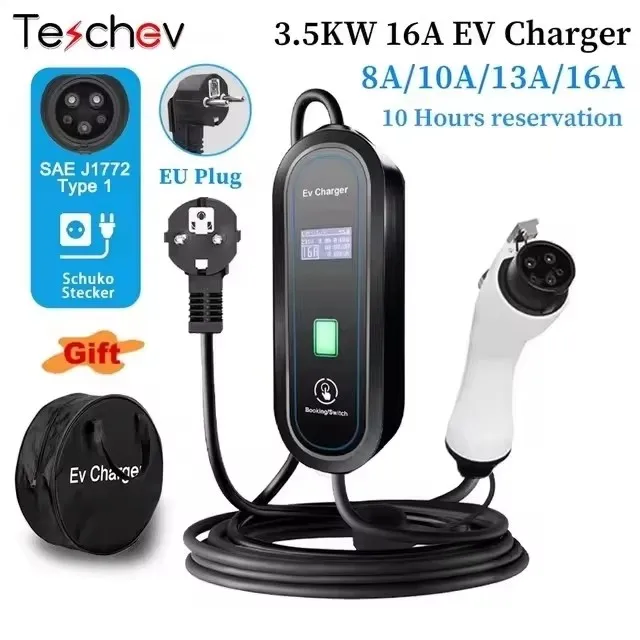

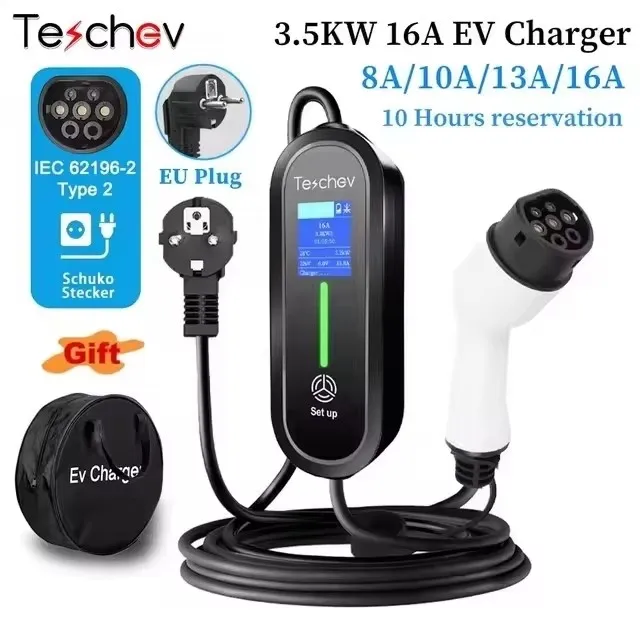

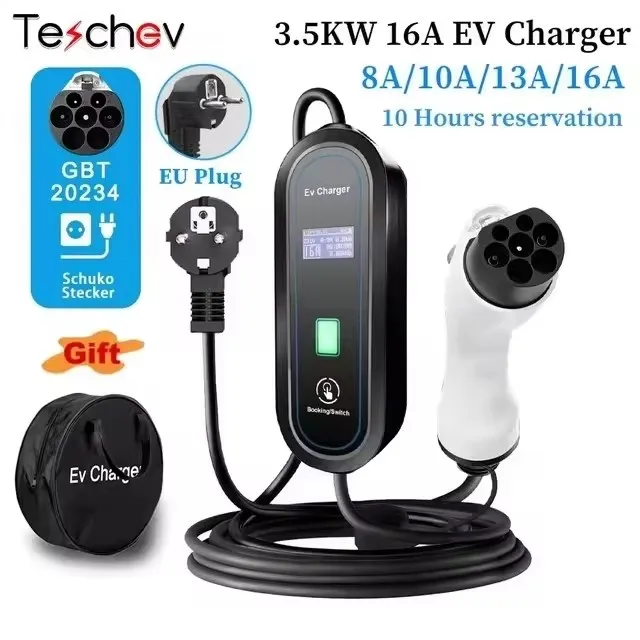

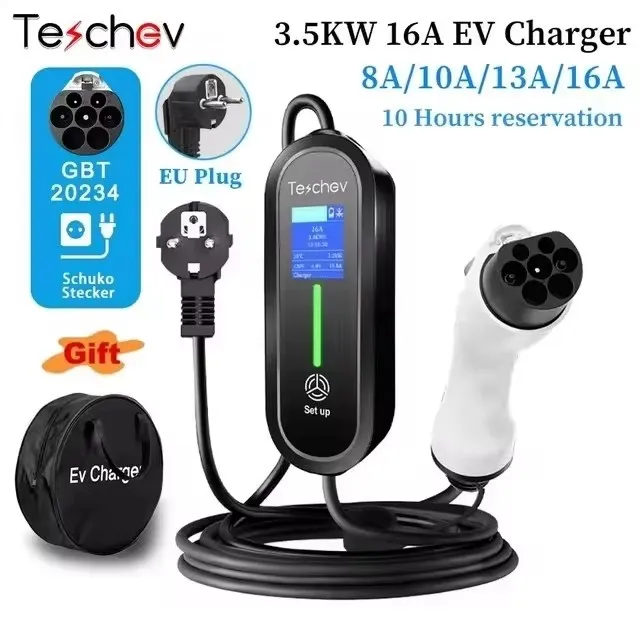

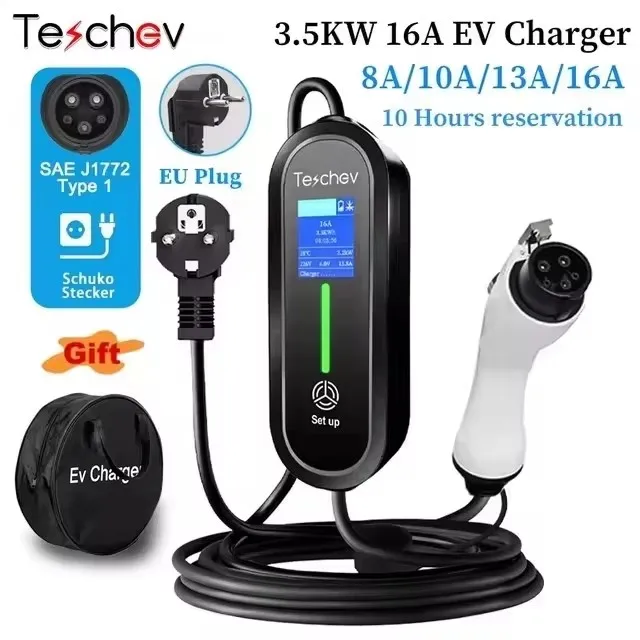

Main Features:

Phases: single phase

Output Power: 3.5kW

Power pins: 3 pcs(L1, N, PE)

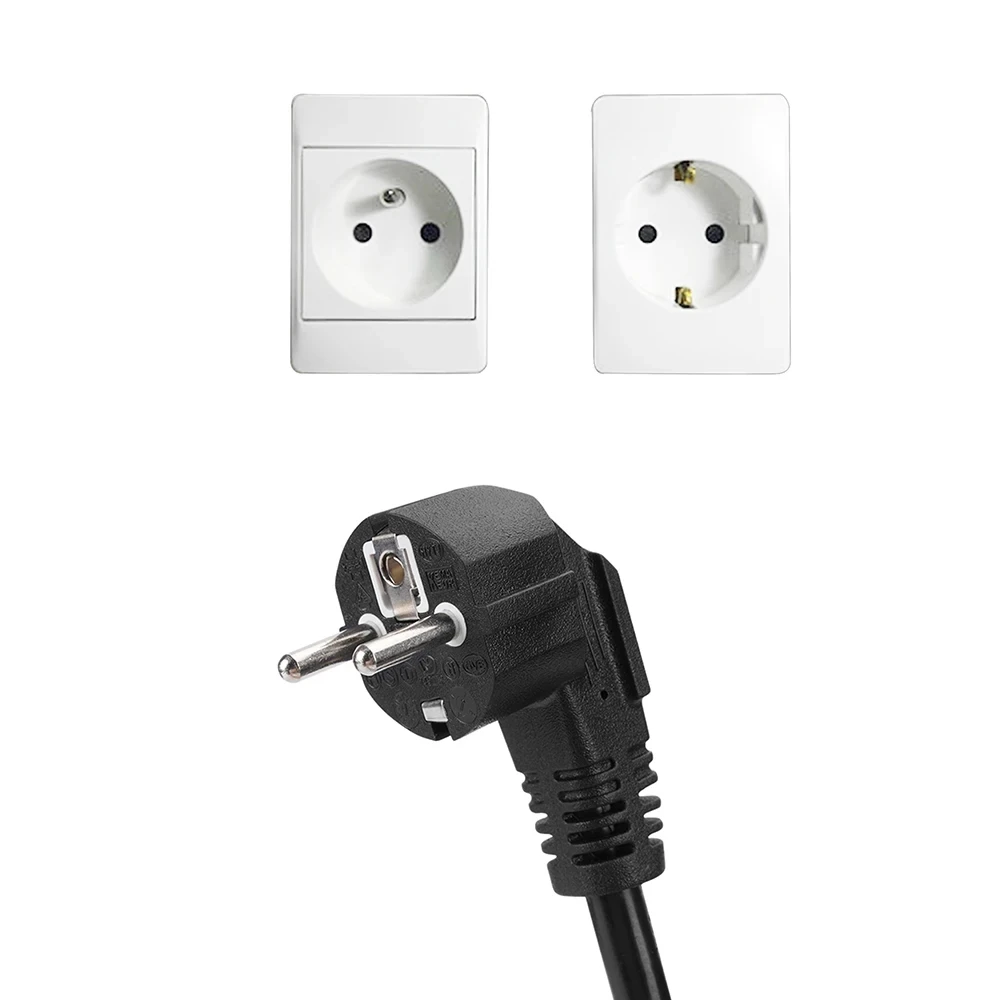

Input Power: 110V-250V AC

ChargingCurrent: 8/10A/13A/16A

adjustableSignal pins: 2 pcs (CP, PD)

Signal current: 2A

Signal voltage: 30V AC

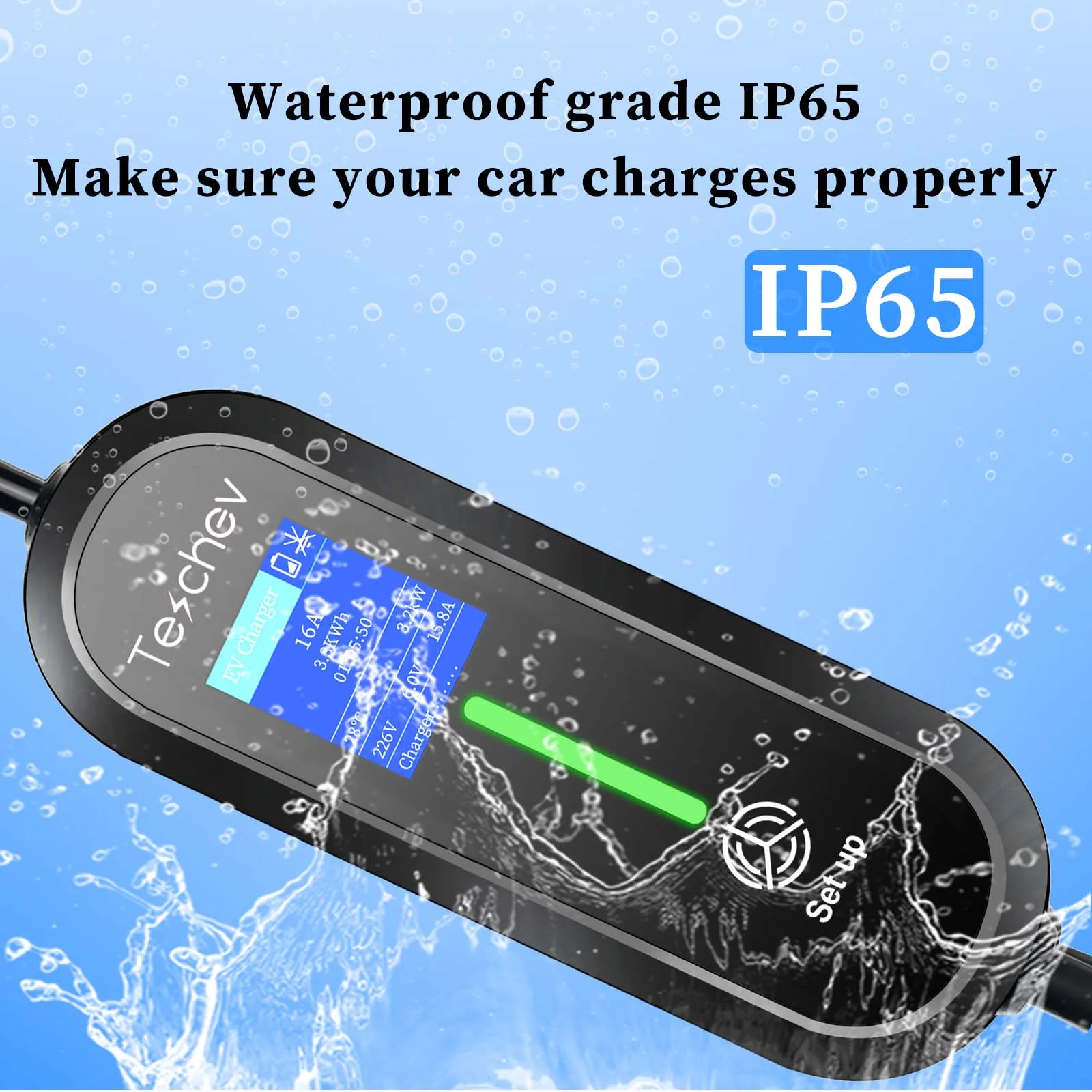

IP Rating: IP66

Operating tempeature: -25℃ to +55℃

Length: 3.5 meter

Weight: 1.7kg

Mechanical life: plug in/out > 10000 times

Impact of external force: can afford 2m drop and 2t vehicle run over pressure

Insulation resistance: > 1000MD (DC500V)

Terminal temperature rise: < 50K

Housing Fire Rating：UL94V-0

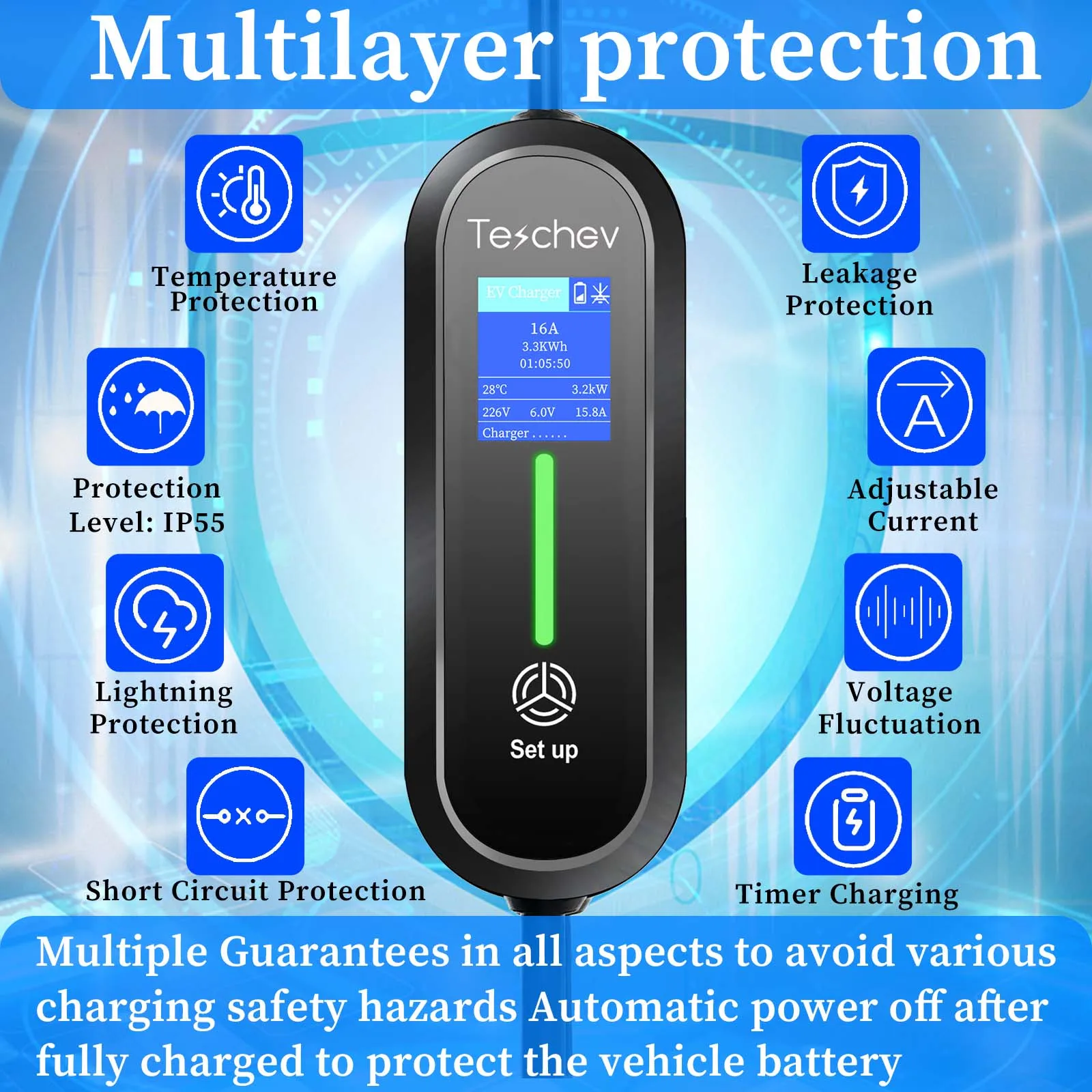

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

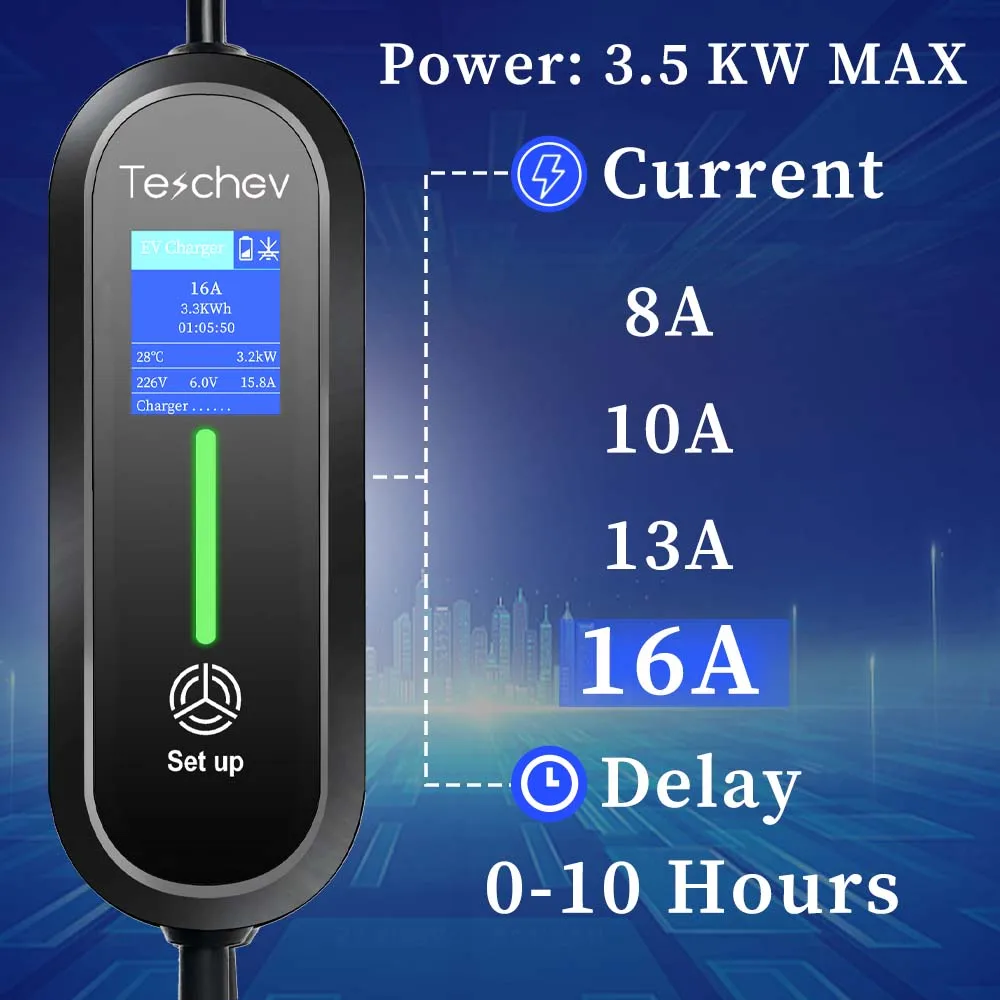

6. Change current: 8A/10A/13A/16A

7.Delayed Charging: 0-10 Hour

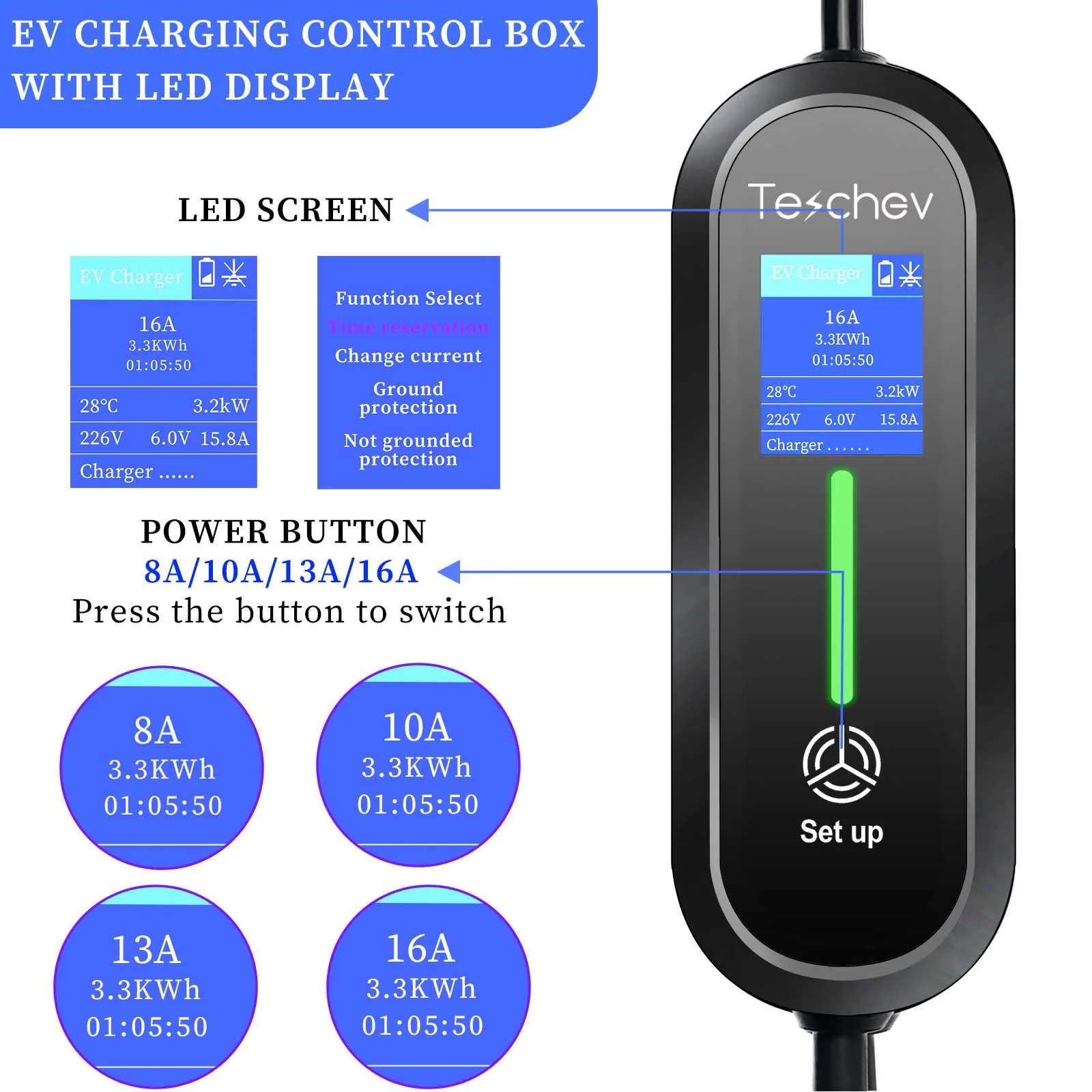

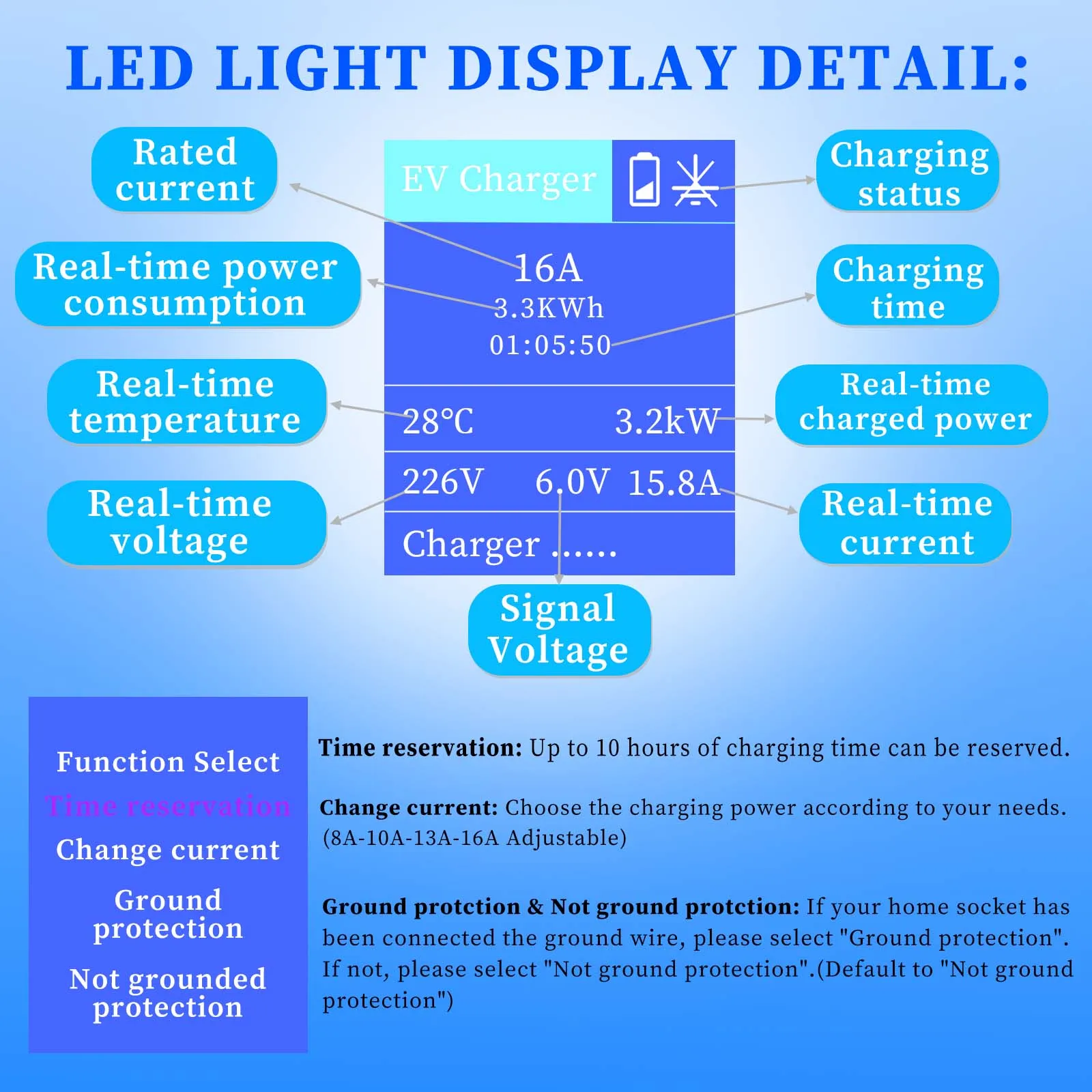

LED Display:

1. Charging Temperature

2. Charging Status

3. Set Current

4. Energy Charged in KW/h

5. Charged time

6. Charging Voltage

7. Charging Current

8. Charging Power

Method of use:

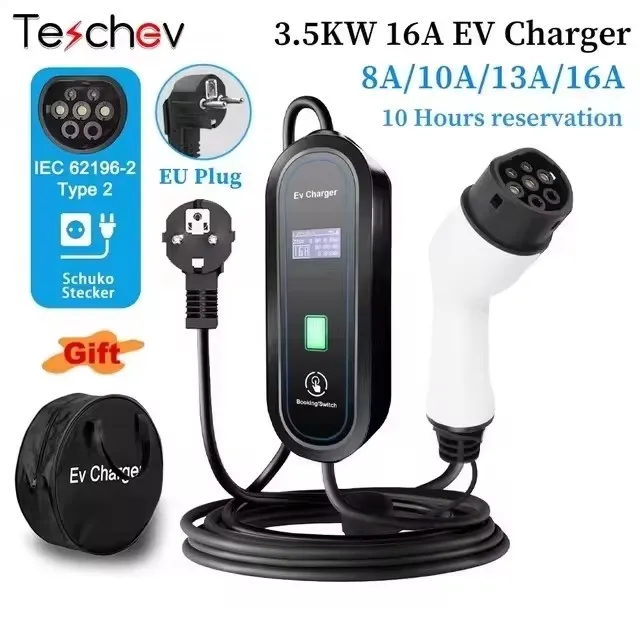

The round shape button “Booking/Switch” is for adjusting current. touch the button lightly to change the current. When you adjust the current, the power plug should be always connected, Car connection plug should be disconnecte
