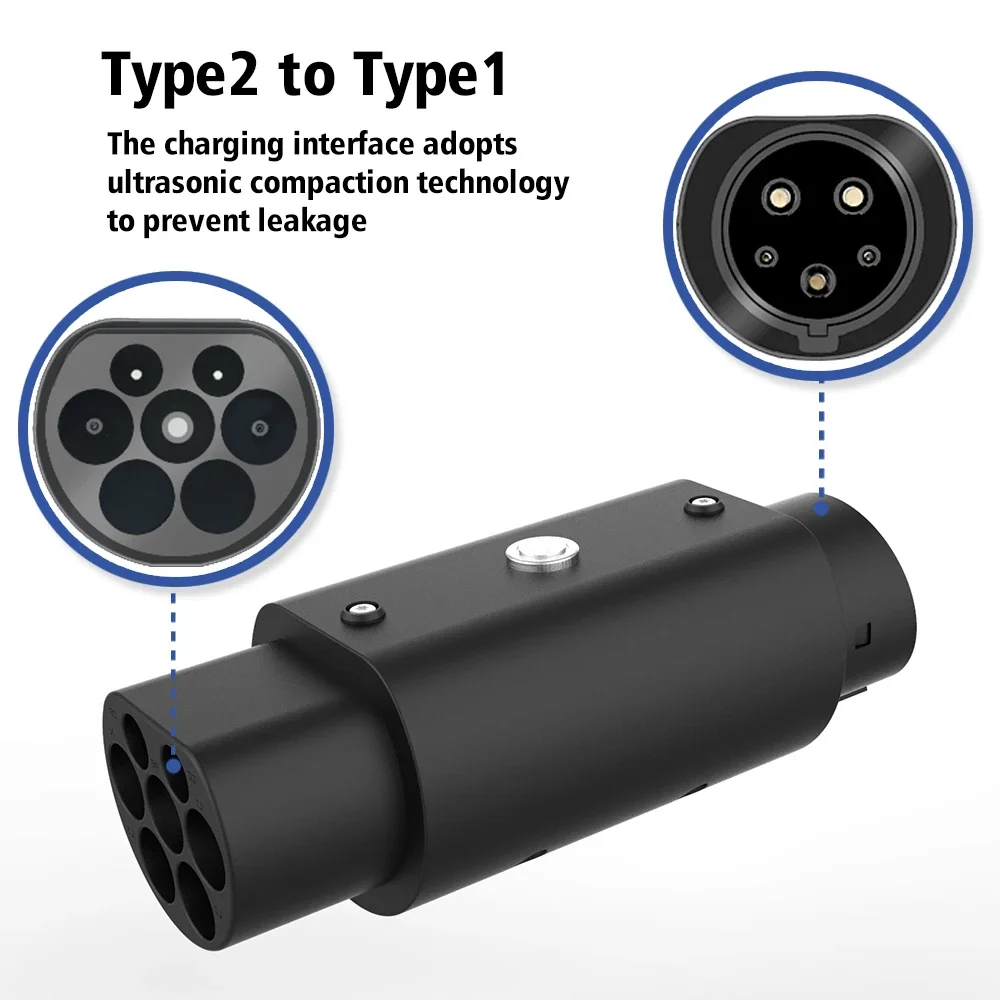

Type 2 to Type 1 European standard to American standard new energy electric vehicle charging adapter

Features:

– Conforms to SAE J1772 standard.

– Beautiful appearance, with protective cover, support front installation.

-The pin head adopts safety insulation design to prevent accidental direct contact with hands.

– Superior protection performance, protection level reaches IP54.

Specification:

Name: Electric car charging adapter

Housing material: thermoplastic

Rated working current: 16A or 32A

Working voltage: 110V~250V

Insulation resistance: >1000MΩ (DC500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5mΩ Max

Flame retardant rating: UL94V-0

Mechanical life: no-load plugging and unplugging>10000 times

Insertion and extraction force when coupling: >45N＜80N

Pin: Copper alloy, silver plated on the surface + thermoplastic on the top

Working environment temperature: -30℃～+50℃

Packing included:

1 * Electric car charging adapter

Note:

1. Please allow 1-3cm (0.4-1.18″) difference due to manual measurement and slight color variation for different display setting.

2. Due to the light and screen difference, the item’s color may be slightly different from the pictures. Please understand.
